Made Simple : MS SQL: What is MSDB database? What are use of MSDB database?

MSDB Database:-

A key and important system database in Microsoft SQL Server is the MSDB database. In addition to other crucial functions, it is crucial for handling different administrative activities, scheduling jobs, and keeping historical data about SQL Server Agent. The MSDB database assists in streamlining and automating routine maintenance, backups, and data transfer activities by serving as a store for crucial metadata and configurations.

1. MSDB database is the 4^th system database which is used to store details of SQL Server Agent like job history, database backup & restore history, job schedules, alerts, and operators.

2. This database contains information on backups, jobs, alerts, operators, and other system-related tasks.

3. We can't drop the MSDB database.

4. We can't remove the primary filegroup, primary data file, or log file.

5. We can't rename the database or primary filegroup.

6. We can't set the database to OFFLINE.

7. We can't set the primary filegroup to READ_ONLY.

8. The Recovery mode of the MSDB database is SIMPLE. It means we can take T-Log backup.

9. The database ID of MSDB is 4.

Advantages of MSDB database:

Centralized Storage for SQL Server Jobs: SQL Server Agent tasks, including their schedules, histories, and step-by-step descriptions, are stored in a single location, the MSDB database. By streamlining job administration and monitoring, this centralized storage makes it simpler to schedule and keep track of diverse jobs and procedures.

Maintenance Plan Storage: Backups, index upkeep, and integrity checks are just a few of the maintenance operations that database administrators may schedule and manage thanks to the storage of maintenance plan data by MSDB. This assists in minimizing downtime, guaranteeing database health, and automating normal maintenance tasks.

Backup and Restore History: The history of database backups and restorations is kept by MSDB, which offers useful details about the backup process and restore procedures. This data may be used by database administrators to check the accuracy of backups, monitor the recovery process, and create disaster recovery plans.

Operators and Alerts for SQL Server Agent: MSDB maintains settings for SQL Server Agent operators and alerts. While operators choose who receives notifications, alerts allow administrators to set up notifications for particular occurrences. This function ensures prompt reactions to important events and system problems.

Database Mail Configuration: Configurations for SQL Server Database Mail, which enables sending email notifications from SQL Server, are stored in MSDB. To enable email alerts for task completion, failures, or other events, database administrators can configure mail profiles, accounts, and SMTP server information.

SSIS Package Storage: When Integration Services (SSIS) packages are deployed to SQL Server, MSDB is utilized to store them. This simplifies the scheduling and administration of packages, making it simpler to carry out ETL (Extract, Transform, Load) procedures.

Disadvantages of MSDB database:

Single Point of Failure: The SQL Server Agent and other components depend on the MSDB database, which is a crucial system database. Scheduled tasks, maintenance schedules, and other associated capabilities may be interfered with if the MSDB database becomes damaged or unavailable.

Increased Database Size: The MSDB database may expand with time, particularly if it contains a lot of information on jobs and maintenance schedules. Larger databases can slow down backup and restoration processes and demand more storage space.

Backup and Restore Complexity: Complexity of backup and restoration procedures: Due to the MSDB database's significance, thorough backup and recovery procedures are necessary. Maintaining task setups, alerts, operators, and other historical data requires frequent MSDB backups.

Data Retention Considerations: The MSDB database can amass a considerable volume of historical data, which might cause problems with data preservation. To manage database expansion and keep performance at its peak, administrators must handle data cleansing or archiving.

Access and security control: Because it is a system database, MSDB includes private data about SQL Server Agent jobs, maintenance schedules, and other parameters. To prevent unauthorized access to this vital information, proper access control and security measures are essential.

Components of the MSDB Database:

The MSDB database is a combination of several essential components like system tables, system views, functions, and system stored procedures.

Details of a few essential components of the MSDB database are given below:

System Tables: The MSDB database contains a few system tables that store information about jobs, alerts, backups, operators, and other system-related tasks. These tables are sysjobs, sysalerts, sysoperators, and sysdbmaintplan_history.

System Views: The MSDB database also contains a few system views to provide easy access to system tables. A few critical system views are sysjobs_view, sysdbmaintplan_history_view, and sysalerts_view, etc.

System Stored Procedures: A few system-stored procedures are sp_add_job, sp_add_alert, and sp_add_operator which help in various administrative tasks.

Functions of the MSDB Database:

This MSDB is also a critical database & helps to manage and maintain the SQL Server instance. A few Important functions of the MSDB database are given below:

1. Manage a history of DB Backups & Restores

2. Manage a history of SQL agent jobs

3. Manage all types of alerts

4. Manage Operators

5. Manage Maintenance Plans

Conclusion:

Now we are aware, that the MSDB database is a critical database in SQL Server Instance which manages the history of backups & restore, jobs, alerts, operators, and other system-related tasks.

FAQs:-

Q1. What is the use of the msdb database in an SQL server?

Ans. The use of the MSDB database is as below:

1. To maintain a history of DB backups & restore

2. To manage a history of SQL agent jobs

3. To manage alerts

4. To manage operators

5. To manage maintenance plans

Q2. What is the msdb database in the SQL server?

Ans. MSDB database is a critical & 4^th system database that helps to manage the history of jobs, execute the jobs at scheduled times, etc.

Q3. What is an MSDB database?

Ans. MSDB database is an important & 4^th system database.

Q4. What is the use of the msdb database in an SQL server?

Ans. MSDB database helps us in below tasks:

1. To maintain a history of DB backups & restore

2. To manage a history of SQL agent jobs

3. To manage alerts

4. To manage operators

5. To manage maintenance plans

Q5. Why is the msdb database so large?

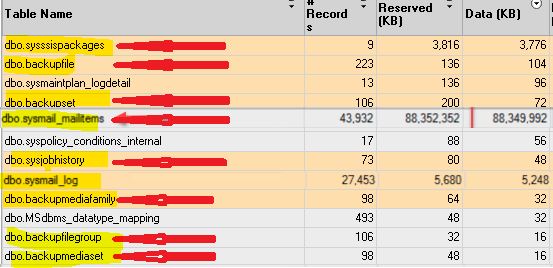

Ans. If we haven't configured SQL agent properties properly, the MSDB database size grows rapidly. If we have lots of agent jobs and SSIS packages that run frequently, it also helps to increase the database size because it generates logs. Check the size of tables in the MSDB database to get more size-related details:
